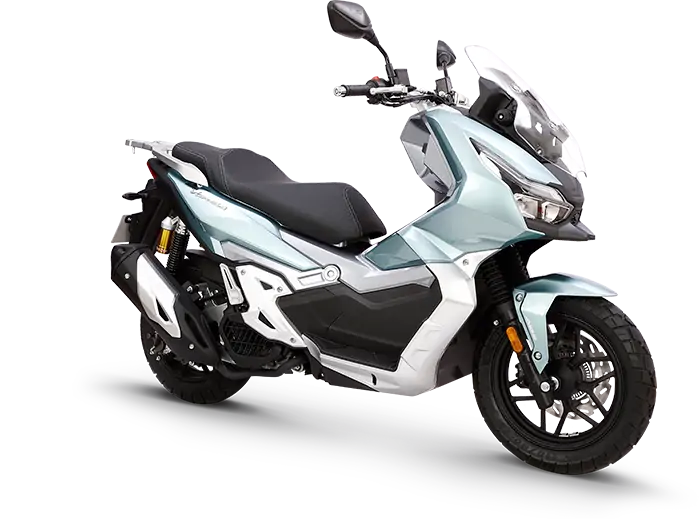

DY150T-36

It is equipped with a 150CC water-cooled four-valve engine, which matches Bosch 8.0 electronic injection, adopts double high-position air intake, and uses imported parts such as DID chains, NOK oil seals, Bando belts, TPI bearings, etc. It can achieve a maximum power of 12.1kw/rpm and a maximum torque of 14.6N?m/rpm. The power is extraordinary, making every ride more confident.

Product specifications

Model	DY150T-36
	Standard	Luxury	Smart	Flagship
size (mm)	20727601260
Wheel base（mm）	1324
Max speed（km/h）	115
Max power（kW/r/min）	12.1/8500
Max torque（N·m/r/min）	14.6/6500
Fuel tank (L)	9.3L
Ground clearance (mm)	165
Main seat height (mm)	775
Net weight (Kg)	150
Tire specifications	Front wheel 110/80-14 ; rear wheel 130/70-13
Battery model and specification	12V9Ah	12V11.2Ah	12V11.2Ah(High-performance fast charge and discharge)	12V11.2Ah(High-performance fast charge and discharge)
Vehicle configuration
T-box	-	-	l	l
shock absorption	Front and upright double shock absorber, Rear double shock absorber	Front and upright double shock absorber, Rear double shock absorber	Front and upright double shock absorber , Rear double shock absorber	Front and upright double shock absorber , Rear double airbag shock absorption
ABS	Front and rear dual channel ABS
Braking type	Front disc and back disc
Headlight light	Four lens LED (AFS)
Taillight	LED	LED	LED(with ESS emergency)	LED(with ESS emergency)

Product Features

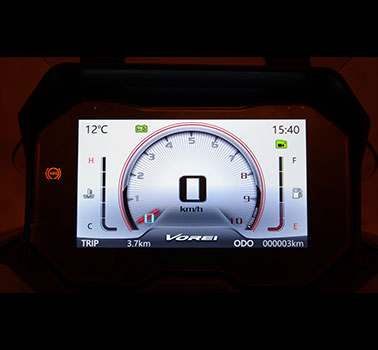

Luxury dashboard

Instrument design of mixture the digital and mechanical, it is with water temperature alarm, engine failure alarm, key induction indicator, ABS alarm indicator (optional), idling stop indicator lights, multiple functions display, keep track of vehicle status.

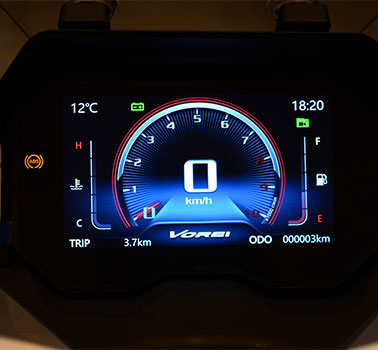

Optimized mix digital meter

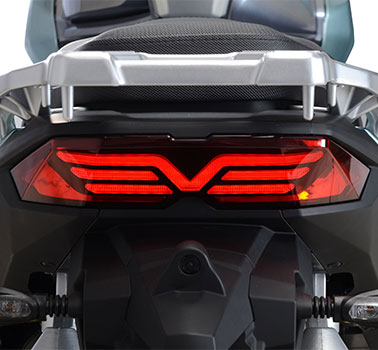

ESS Emergency Brake Light

The flagship version is equipped with an ESS emergency brake warning system. When the emergency brake is applied, the tail lights will flash and the front and rear turn signals will flash to remind the rear personnel and vehicles paying attention to safety.

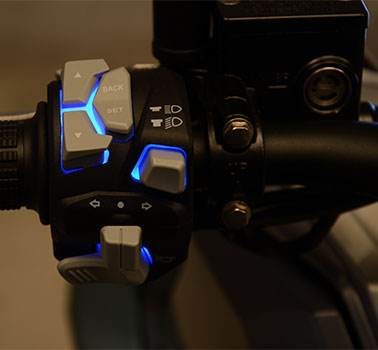

Total Electric Control Switch

When the vehicle is parked for a long time and does not be used, the total power supply can be turned off to effectively reduce the power consumption of the vehicle.
