DY125T-20 (VRS125)

VRS125 is equipped with Dayang's new Vi-Core 3.0 power platform, which can trigger hybrid motion at speeds above 2000r, and the hybrid motion time can reach 10S. VPS125 is equipped with Dayang Vi-Core 2.0 Power platform, Vi-core power platform integrates gasoline-electric hybrid technology, idling start-stop technology, silent start technology and fast charging technology.When the vehicle starts and accelerates,electric power assist, fuel saving and environmental protection, comfortable experience. The power response is quick and smooth, making daily commuting easy.

Product specifications

Model	VRS125
Version	Standard	ABS	TCS
Size (mm)	1897x718×1132
Wheel base（mm）	1350
Ground clearance (mm)	150
Main seat height (mm)	760
Net weight (Kg)	138
Front wheel	110/70-12
Rear wheel	120/70-12
Fuel tank (L)	10
Headlight/Winker / Taillight	LED
Engine type		liquid cooling,4 valves
Cylinder diameter x stroke (mm)	52.4x57.7
Compression ratio	11.5:1
Front brake	disc
Rear brake	drum	disc	disc
Hybrid	Vi-core3.0
ABS system	/	two-channel	two-channel
Max power（kW/r/min）		11.0/8500
Max torque（N·m/r/min）		12.5/6500
Idling start-stop	●
USB charger	●
Max Speed（km/h）	105
TCS system	/	/	●

Product Features

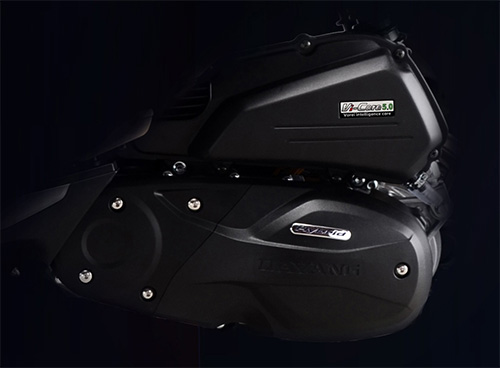

Water-cooled Four Valve Engine

150 displacement maximum power 12.1kW, maximum torque 14.6N · m 125 displacement maximum power 11kW, maximum torque 12.5N · m

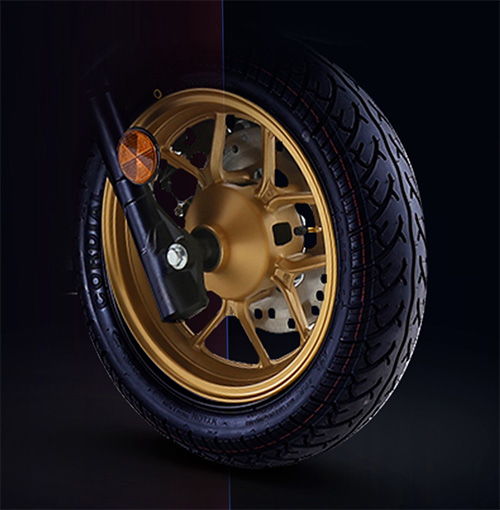

Anti-skid Tire

Adopting wear-resistant and anti slip patterns for dynamic balance tuning, increasing tire grip, improving power and riding safety

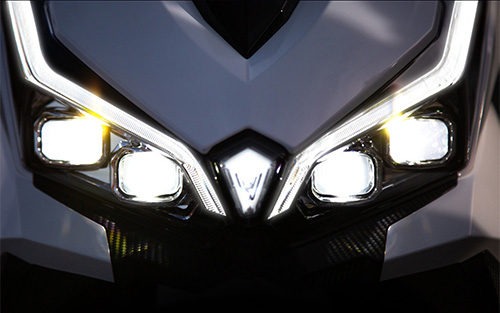

4-lens LED Headlights+Steering Widening Function

The illumination of LED headlights meets the D-level of vehicle regulations.

The high beam illumination shall not be less than 42000cd, and the low beam illumination width shall reach 60 ° (when the high beam or turn signal is turned on, the angle shall be widened by 24 °).

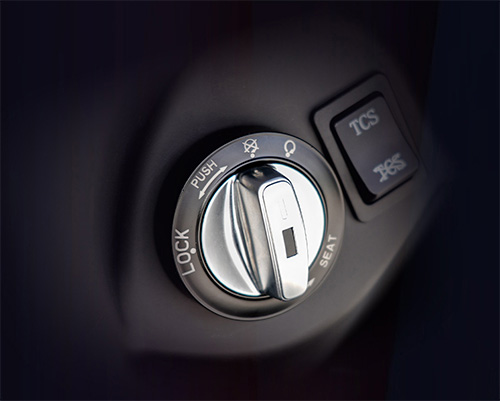

Keyless Start

Unlock upon approaching, with the OFF gear turned off and the key away for 10 seconds. It can automatically lock and support the use of a mechanical key to unlock the seat cushion when power is depleted

Application scenarios
