DY350T-6

It is equipped with a 333CC water-cooled four-valve engine with a maximum power of 21.7kw/7000rpm and a maximum torque of 33.5N.m/5500rpm. It adopts double high air intake, and uses imported parts such as DID chain, NOK oil seal, Bando belt, TPI bearing, etc., which has better abrasion resistance and prolongs the life of the engine.

Product specifications

Model	Standard	Luxury
size (mm)	23068201343
Wheel base（mm）	1548
Ground clearance (mm)	165
Front wheel	120/70-14 Turtle tire
Rear wheel	150/70-13 Turtle tire
Quality(Kg)	208
Main seat height (mm)	755
Fuel tank (L)	17.4
Displacement (ml)	333.4
Engine type	liquid cooling,4 valves
Max power（kW/r/min）	21.7/7000
Max torque（N·m/r/min）	33.5/5500
Max speed（km/h）	138
Braking type	Front disc and back disc
Front shock absorber	Positive double minus
Rear shock absorber	Airbag rear shock absorption
Front brake disc	Φ 276mm single disc
Rear brake disc	Φ 240mm single disc
Brake lever gear adjustment	Available
Brake handle manual parking	Available
ABS	Available
Headlight light	Four lens LED (AFS)
Taillight	LED
Turnlight	LED
ESS emergency brake warning system	Available
Handle switch with backlight		Available
Speedometer	7 inch TFT	7 inch TFT with TBOX
DVR		Front and Rear
Lock&Ignation set	Keyless
USB charger	Available
Cigar lighter	Available
Battery	14Ah
Steering buzzer	Available
Box light	Available
Windshield	Two-speed adjustment
Tire pressure alarm	Available
Side stand shut down	Available
Power control switch	In the right tool box
Side stand shut down control switch	In the left tool box

Product Features

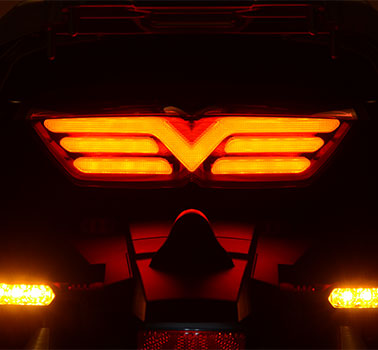

ESS emergency brake light

DY350T-6 is equipped with an ESS emergency brake warning system. When the emergency brake is applied, the tail lights will flash and the front and rear turn signals will flash to remind the rear personnel and vehicles paying attention to safety.

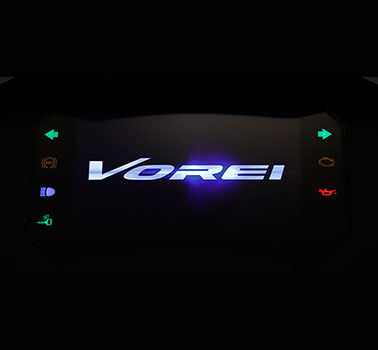

7 inch TFT color screen instrument

The luxury version is equipped with a 7-inch TFT color screen instrument with multiple functions such as water temperature alarm, tire pressure alarm, engine failure alarm, key induction indicator, ABS alarm and so on.

Double Airbag Shock Absorption

The dual airbag shock absorber has been carefully adjusted, greatly improving the handling stability and comfort.

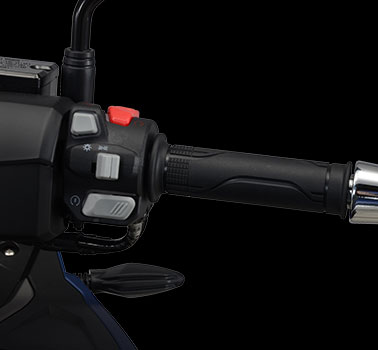

Side Stand Shut Down

Side stand shut down avoid injury caused by forgetting to retract the side bracket when driving. (A control switch is set next to the cigarette lighter to control the start and stop of this function)
